ABB has expanded its U.S. low-voltage drive portfolio with the ACQ580-3P, a configured-to-order ultra-low harmonic drive package for water and wastewater pumping. Announced on July 22, 2026, the package combines an ACQ580 ultra-low harmonic variable frequency drive with a narrow-footprint indoor enclosure and application-specific pump functions.
What ABB Has Launched

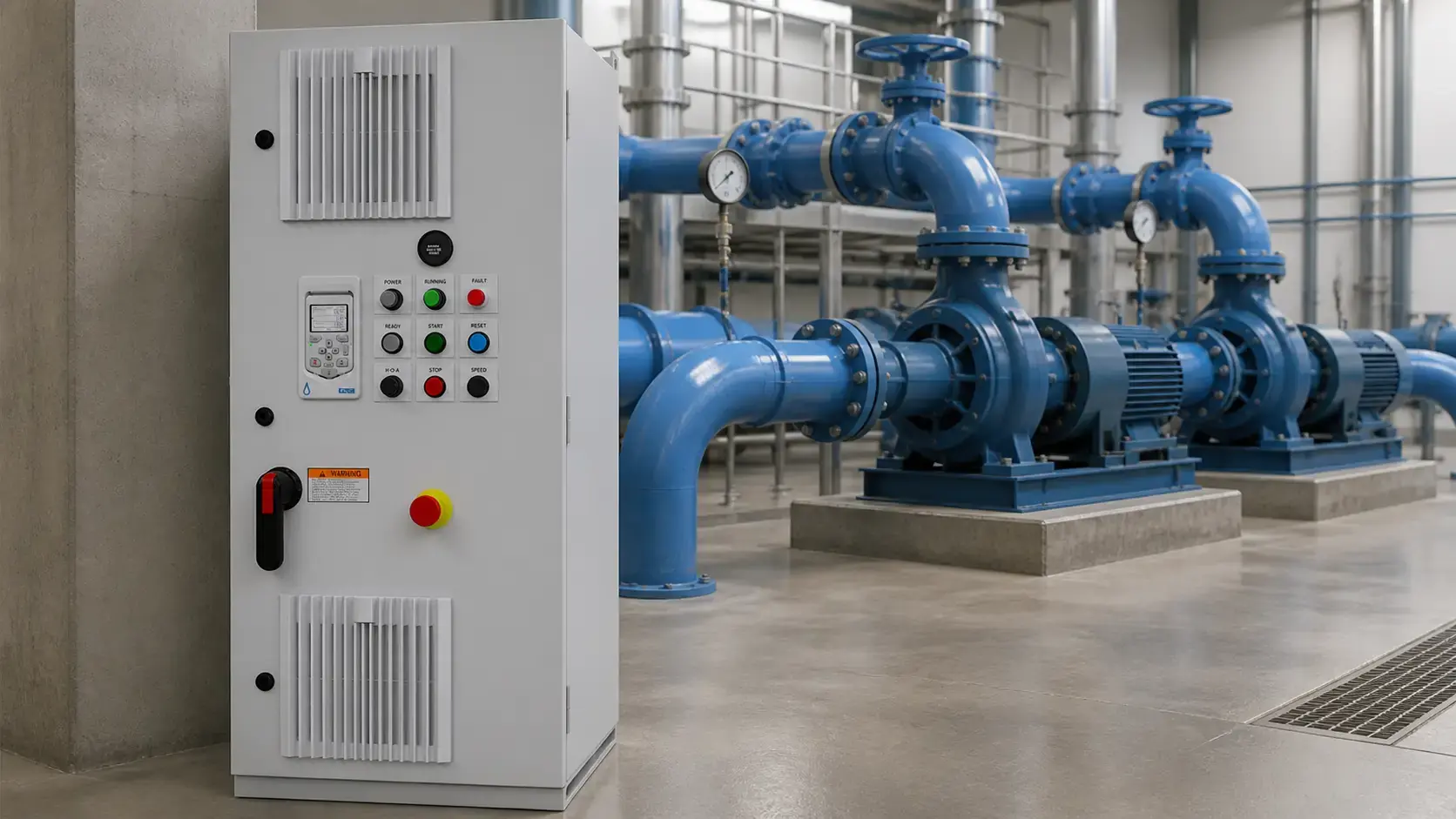

The ACQ580-3P joins ABB’s ACQ580 packaged-drive family as a pre-engineered but configurable performance package. ABB lists a power range of 5 to 400 hp and UL Type 1/12 enclosures for indoor use. The company positions the narrow layout for electrical rooms and retrofit projects where cabinet space and clearance are constrained.
ABB says the package is designed for less than 3% total harmonic current distortion and unity power factor. The manufacturer links this performance to IEEE 519 system objectives and says the architecture can reduce the need for separate harmonic-mitigation equipment. Buyers should treat those statements as product claims: compliance with IEEE 519 is assessed at the system point of common coupling and still depends on the complete installation and operating conditions.
Why the Ultra-Low Harmonic Design Matters
Variable frequency drives can introduce harmonic current into a facility’s electrical network. In water plants with multiple pumps, standby generators and sensitive control equipment, harmonic performance can affect transformer loading, generator compatibility, power-factor behavior and the sizing of upstream components.
ABB states that the ACQ580-3P is designed to ride through voltage sags and voltage imbalance and to operate on utility or emergency-generator power without external auxiliary controls. These functions can be valuable in critical pumping applications, but they do not replace a site-specific power-quality, protection and generator-compatibility study.
Enclosure, Protection and Configuration Options
The standard package includes a 65 kA short-circuit current rating circuit breaker, conformally coated circuit boards, a control-power transformer, fans and filters, according to ABB. Available options include a fusible disconnect rated up to 100 kA SCCR, surge protection, a dv/dt filter, cabinet heating, pilot devices, an emergency stop, a Bluetooth control panel and multiple communication choices.
Those options are not automatically present in every order. A request for quotation should identify the required enclosure type, short-circuit rating, disconnect arrangement, surge protection, motor-cable conditions, communications and local control devices rather than specifying only “ACQ580-3P.”
Pump Functions Go Beyond Speed Control
ABB lists embedded functions including cavitation detection and control, pump cleaning and deragging, pipe flushing, dry-pump and dry-run protection, motor-disconnect detection, motor preheat and communication-failure detection. It also identifies multi-pump control, pump priority, sensorless flow calculation, PI autotuning and soft pipe filling.
The practical value of each function depends on the pump, process instruments, control philosophy and commissioning settings. Operators should confirm which features are standard, which require field devices or optional hardware, and who owns parameter validation before startup.
Six Checks to Put in the RFQ
- Motor and supply data: state motor horsepower, voltage, full-load current, overload duty, supply configuration and expected voltage variation.
- Harmonic objective: define the point of common coupling, operating load cases and the required study or acceptance evidence instead of relying only on a component THDi figure.
- Available fault current: verify the required equipment SCCR and the selected circuit-breaker or fusible-disconnect configuration.
- Enclosure and environment: confirm indoor location, temperature, contamination, ventilation, side and rear clearance, and any cabinet-heater requirement.
- Motor cable and output filtering: provide cable length, motor insulation data and any requirement for a dv/dt filter.
- Controls and communications: list the network protocol, local controls, emergency-stop philosophy, remote commissioning policy and cybersecurity responsibility.
U.S. Sourcing and Project Scope
ABB says selected ACQ580-3P models are available in Build America, Buy America compliant configurations. That can be relevant to municipal and federally funded infrastructure projects, but the announcement does not establish that every rating, option or order code qualifies. Procurement teams should request configuration-specific country-of-origin and BABA documentation for the actual bill of materials.
The July 22 announcement is U.S.-focused and uses horsepower, UL enclosure terminology and BABA language. It should not be treated as confirmation of identical ratings, approvals or availability in other markets.
What Buyers Should Not Assume
The launch does not provide a universal energy-saving percentage, a completed IEEE 519 study or proof that external filtering is unnecessary at every site. It also does not replace coordination studies, thermal calculations, generator checks, motor-cable review or commissioning documentation.
Before issuing a purchase order, buyers should obtain the current ACQ580-3P flyer, product overview, dimensional information and configuration-specific submittal from ABB or an authorized channel.
Takeaway
The ACQ580-3P gives U.S. water and wastewater projects a new configured-to-order option where low harmonic current, pump-specific control and a compact indoor package are priorities. The useful procurement question is not simply whether the drive is rated below 3% THDi. It is whether the selected configuration, fault rating, enclosure, output filtering, controls and compliance documents match the real installation.
